November 8, 2019

Previous chapter - Overview - Appendices - Next Chapter

Let’s try and read keypresses from the user. Remove the line with “Hello, world” from main and change your code as follows:

src/main.rs CHANGED
@@ -1,3 +1,7 @@
1
+ use std::io::{self, Read};
1
2
  fn main() {
2
- println!("Hello, world!");
3
+ for b in io::stdin().bytes() {
4
+ let c = b.unwrap() as char;
5
+ println!("{}", c);
6
+ }
3
7
  }

See this step on github

Play around with that program and try to find out how it works. To stop it, press Ctrl-C.

First, we are using use to import things into our program. We would like to do something with the input/output of the system, io in short. So we use use std::io::{self, Read}, which imports io for us and is short for:

use std::io;
use std::io::Read;

After this, we are able to use io in our code, and bringing Read into our code enables us to use bytes(). Try running your code without importing Read, and the compiler will exit with an error explaining that Read needs, in fact, to be in scope, because it brings the implementation of bytes with it. This concept is called a trait, and we will take a deeper look at traits later in this tutorial. The documentation on traits is definitely something to add on your reading list!

If you are new to Rust, don’t worry. We have a bit of learning to do in this chapter, but future code additions won’t bring as many new concepts at once as this one. Also, some of the concepts get clearer as the tutorial progresses, so don’t worry if you don’t understand everything at once.

The first line in main does a lot of things at once, which can be summarized as “For every byte you can read from the keyboard, bind it to b and execute the following block”.

Let’s unravel that line now. io::stdin() means that we want to call a method called stdin from io - io being one of the things we just imported. stdin represents the Standard Input Stream, which, simply put, gives you access to everything that can be put into your program.

Calling bytes() on io::stdin() returns something we can iterate over, or in other words: Something which lets us perform the same task on a series of elements. In Rust, same as many other languages, this concept is called an Iterator.

Using an Iterator allows us to build a loop with for..in. With for..in in combination with bytes(), we are asking rust to read byte from the standard input into the variable b, and to keep doing it until there are no more bytes to read. The two lines after for..in print out each character - we will explain unwrap and println! later - and return if there is nothing more to read.

When you run ./hecto, your terminal gets hooked up to the standard input, and so your keyboard input gets read into the b variable. However, by default your terminal starts in canonical mode, also called cooked mode. In this mode, keyboard input is only sent to your program when the user presses Enter. This is useful for many programs: it lets the user type in a line of text, use Backspace to fix errors until they get their input exactly the way they want it, and finally press Enter to send it to the program. But it does not work well for programs with more complex user interfaces, like text editors. We want to process each keypress as it comes in, so we can respond to it immediately.

To exit the above program, press Ctrl-D to tell Rust that it’s reached the end of file. Or you can always press Ctrl-C to signal the process to terminate immediately.

What we want is raw mode. Fortunately, there are external libraries available to set the terminal to raw mode. Libraries in Rust are called Crates - if you want to read up on those, here’s the link to the docs. Like many other programming languages, Rust comes with a lean core and relies on crates to extend its functionality. In this tutorial, we will sometimes do things manually first before switching to external functionality, and sometimes we jump directly to the library function.

Press q to quit?

To demonstrate how canonical mode works, we’ll have the program exit when it reads a q keypress from the user.

src/main.rs CHANGED
@@ -3,5 +3,8 @@ fn main() {
3
3
  for b in io::stdin().bytes() {
4
4
  let c = b.unwrap() as char;
5
5
  println!("{}", c);
6
+ if c == 'q' {
7
+ break;
8
+ }
6
9
  }
7
10
  }

See this step on github

Note that in Rust, characters require single quotes, ' , instead of double quotes, ", to work!

To quit this program, you will have to type a line of text that includes a q in it, and then press enter. The program will quickly read the line of text one character at a time until it reads the q, at which point the for..in loop will stop and the program will exit. Any characters after the q will be left unread on the input queue and not printed out. Rust discards them while exiting.

Entering raw mode by using termion

Change your Cargo.toml as follows:

Cargo.toml CHANGED
@@ -7,3 +7,4 @@ edition = "2018"
7
7
  # See more keys and their definitions at https://doc.rust-lang.org/cargo/reference/manifest.html
8
8

9
9
  [dependencies]
10
+ termion = "1"

See this step on github

With this, we are telling cargo that we want to have a dependency called termion, in the version 1. Cargo follows a concept called Semantic Versioning, where a program version usually consists of three numbers (like 0.1.0), and by convention, no breaking change occurs as long as the first number stays the same. That means that if you develop against termion v1.5.0, your program will also work with termion v1.5.1 or even termion v1.7.0. This is useful, because it means that we are getting bugfixes and new features, but the existing features can still be used without us having to change our code. By setting temion = "1", we are making sure we are getting the latest version starting with 1.

Next time you run cargo build or cargo run, the new dependency, termion will be downloaded and compiled, and the output will look something like this:

   Compiling libc v0.2.62
   Compiling numtoa v0.1.0
   Compiling termion v1.5.3
   Compiling hecto v0.1.0 (/home/philipp/repositories/hecto)
    Finished dev [unoptimized + debuginfo] target(s) in 7.83s

As you can see, termion comes with dependencies itself, and cargo downloads and compiles them, too. You might notice that the Cargo.lock has also changed: It now contains the exact names and versions of all packages and dependencies which have been installed. This is helpful to avoid “Works on my machine” - bugs if you are working on a team, where you are encountering a bug in, say, termion v1.2.3, while your co-worker is on termion v1.2.4 and doesn’t see it.

Now change the main.rs as follows:

src/main.rs CHANGED
@@ -1,5 +1,9 @@
1
- use std::io::{self, Read};
1
+ use std::io::{self, stdout, Read};
2
+ use termion::raw::IntoRawMode;
3
+
2
4
  fn main() {
5
+ let _stdout = stdout().into_raw_mode().unwrap();
6
+
3
7
  for b in io::stdin().bytes() {
4
8
  let c = b.unwrap() as char;
5
9
  println!("{}", c);

See this step on github

Try it out, and you will notice that every character you type in is immediately printed out, and as soon as you type q, the program ends.

So what did we do?

There are a few things to note here. First, we are using termion to provide stdout, the counterpart of stdin from above with a function called into_raw_mode(), which we are calling. But why are we calling that method on stdout to change how we read from stdin? The answer is that terminals have their states controlled by the writer, not the reader. The writer is used to draw on the screen or move the cursor, so it is also used to change the mode as well.

Second, we are assigning the result of into_raw_mode to a variable named _stdout but we are not doing anything with that variable. Why? Because this is our first encounter with Rust’s Ownership System. To summarize a complex concept, functions can ?own certain things. Un-owned things will be removed. into_raw_mode modifies the terminal and returns a value which, once it is removed, will reset the terminal into canonical mode - so we need to keep it around by binding it to _stdout. You can try it out by removing let _stdout = - the terminal won’t stay in raw mode.

By prefixing the variable with a _, we are actually telling others reading our code that we want to hold on to _stdout even though we are not using it. If you have an unused variable not prefixed with _, the compiler will assume that you have made a mistake and warn you.

Though the topic of ownership is complex, you don’t need to fully understand it at this point. Your understanding will grow over the course of this tutorial.

Observing keypresses

To get a better idea of how input in raw mode works, let’s improve on how we print out each byte that we read.

src/main.rs CHANGED
@@ -5,8 +5,13 @@ fn main() {
5
5
  let _stdout = stdout().into_raw_mode().unwrap();
6
6

7
7
  for b in io::stdin().bytes() {
8
- let c = b.unwrap() as char;
9
- println!("{}", c);
8
+ let b = b.unwrap();
9
+ let c = b as char;
10
+ if c.is_control() {
11
+ println!("{:?} \r", b);
12
+ } else {
13
+ println!("{:?} ({})\r", b, c);
14
+ }
10
15
  if c == 'q' {
11
16
  break;
12
17
  }

See this step on github

Before we discuss the new functionality, let’s go through the changes quickly.

First, we are no longer only printing the character c, but also the byte code b. In case you are wondering about b: in Rust, it is perfectly legal to declare a variable twice. We are declaring b first in for b in..., and then again with let b = b.unwrap(). This is called variable shadowing, and it is immensely useful: The first value of bis not useful for us, as we only want to work with the “unwrapped” value (I promise, we will explain that soon!). Variable shadowing makes sure we don’t have to have to deal with two variables, like b_wrapped and b. Try playing around with this concept by dropping the let in let b....

By the way, the as keyword attempts to transform a primitive value into another one, in this case a byte into a single char.

is_control() tests whether a character is a control character. Control characters are nonprintable characters that we don’t want to print to the screen. ASCII codes 0–31 are all control characters, and 127 is also a control character. ASCII codes 32–126 are all printable. (Check out the ASCII table to see all of the characters.)

println! is a macro which prints its input in a single line. {} and {:?} within the argument passed to println! are placeholders which are filled with the remaining parameters - so println!("This is a char: {}", 'c'); will print out “This is a char: c” . The placeholder {} is for elements for which a printable representation is known, such as a char. {:?} is a placeholder for elements for which a string representation is not known, but a “debug string representation” has been implemented. To understand the difference, try swapping around {} and {:?} and vice versa and see what happens (Understanding that difference is not crucial for building hecto, though).

We are also printing out \r (Carriage Return) at the end of each line. This makes sure our output is neatly printed line by line without indendation. The carriage return moves the cursor back to the beginning of the current line before println! adds a \n (newline), which moves the cursor down a line, scrolling the screen if necessary. (These two distinct operations originated in the days of typewriters and teletypes.)

This is a very useful program. It shows us how various keypresses translate into the characters we read. Most ordinary keys translate directly into the characters they represent. But try seeing what happens when you press the arrow keys, or Escape, or Page Up, or Page Down, or Home, or End, or Backspace, or Delete, or Enter. Try key combinations with Ctrl, like Ctrl-A, Ctrl-B, etc.

You’ll notice a few interesting things:

  • Arrow keys, Page Up, Page Down, Home, and End all input 3 or 4 bytes to the terminal: 27, [, and then one or two other characters. This is known as an escape sequence. All escape sequences start with a 27 byte. Pressing Escape sends a single 27 byte as input, which explains either the name of the key or the sequence.
  • Backspace is byte 127.
  • Enter is byte 13, which is a carriage return character, also known as '\r' - and not, as you might expect, a newline, '\n'
  • Special characters such as German umlauts also produce multiple bytes.
  • Ctrl-A is 1, Ctrl-B is 2, Ctrl-C is… 3 and doesn’t terminate the program as you might have expected. And the rest of the Ctrl key combinations seem to map the letters A–Z to the codes 1–26.

Press Ctrl-Q to quit

We now know that the Ctrl key combined with the alphabetic keys seems to map to bytes 1–26. We can use this to detect Ctrl key combinations and map them to different operations in our editor. We’ll use that to map Ctrl-Q to the quit operation.

src/main.rs CHANGED
@@ -1,6 +1,11 @@
1
1
  use std::io::{self, stdout, Read};
2
2
  use termion::raw::IntoRawMode;
3
3

4
+ fn to_ctrl_byte(c: char) -> u8 {
5
+ let byte = c as u8;
6
+ byte & 0b0001_1111
7
+ }
8
+
4
9
  fn main() {
5
10
  let _stdout = stdout().into_raw_mode().unwrap();
6
11

@@ -12,7 +17,7 @@ fn main() {
12
17
  } else {
13
18
  println!("{:?} ({})\r", b, c);
14
19
  }
15
- if c == 'q' {
20
+ if b == to_ctrl_byte('q') {
16
21
  break;
17
22
  }
18
23
  }

See this step on github

If you think that this whole bitwise-voodoo is too low-level for the task, then you are right! We are doing this now to get a better understanding about the fundamentals, but we will refactor it in the next chapter.

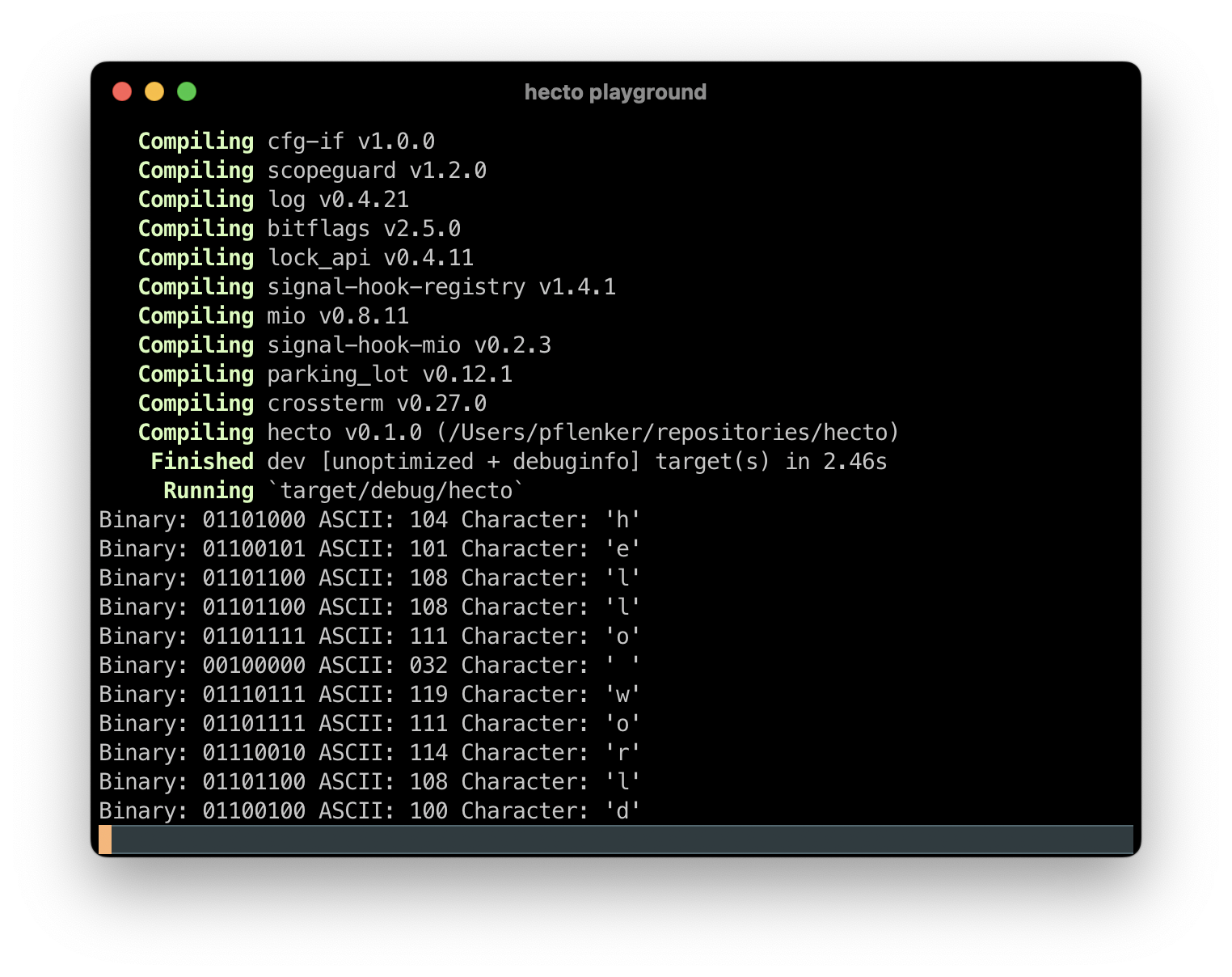

The to_ctrl_byte function bitwise-ANDs a character with the value 00011111, in binary. If you are interested, you can use println!("{:#b}", b); to print out the binary representation of the variable b (The b in {:#b} and the variable name b are not related). Try this to see the actual bytes which are read into our program. When you compare the output for Ctrl-Key with the output of the key without Ctrl, you will notice that Ctrl sets the upper 3 bits to 0. If we now remember how bitwise and works, we can see that to_ctrl_byte does just the same.

The ASCII character set seems to be designed this way on purpose. (It is also similarly designed so that you can set and clear a bit to switch between lowercase and uppercase. If you are interested, find out which byte it is and what the impact is on combinations such as Ctrl-a in contrast to Ctrl-Shift-a.)

Error Handling

It’s time to think about how we handle errors. First, we add a die() function that prints an error message and exits the program.

src/main.rs CHANGED
@@ -6,6 +6,10 @@ fn to_ctrl_byte(c: char) -> u8 {
6
6
  byte & 0b0001_1111
7
7
  }
8
8

9
+ fn die(e: std::io::Error) {
10
+ panic!(e);
11
+ }
12
+
9
13
  fn main() {
10
14
  let _stdout = stdout().into_raw_mode().unwrap();
11
15


See this step on github

panic! is a macro which crashes the program with an error message. Unlike some other programming languages, Rust does not allow you to add some kind of try..catch block around the code to catch any error that might occur. Instead, we are propagating errors up alongside the function return values, which will allow us to treat errors at the highest level.

This propagation works so that a function where an error could happen returns something called a Result, which is a wrapper around the result we’re after, or an error. Every value in b is originally a Result, which either holds an Ok wrapping the byte we have read in, or an Err which wraps an Error object, indicating that something went wrong while reading the byte. To get the value we need, we can call unwrap, which is short for: “If we have an Ok, return the value wrapped in it. panic if we have an Err.”

We want to control the crash ourselves instead of letting Rust panic whenever an error occurs, because later on, we want to clear the screen before crashing, to not leave the user with half-drawn input. For now, let’s simply check for an error and call die, which panics for us.

Let’s implement that now.

src/main.rs CHANGED
@@ -14,15 +14,19 @@ fn main() {
14
14
  let _stdout = stdout().into_raw_mode().unwrap();
15
15

16
16
  for b in io::stdin().bytes() {
17
- let b = b.unwrap();
18
- let c = b as char;
19
- if c.is_control() {
20
- println!("{:?} \r", b);
21
- } else {
22
- println!("{:?} ({})\r", b, c);
23
- }
24
- if b == to_ctrl_byte('q') {
25
- break;
17
+ match b {
18
+ Ok(b) => {
19
+ let c = b as char;
20
+ if c.is_control() {
21
+ println!("{:?} \r", b);
22
+ } else {
23
+ println!("{:?} ({})\r", b, c);
24
+ }
25
+ if b == to_ctrl_byte('q') {
26
+ break;
27
+ }
28
+ }
29
+ Err(err) => die(err),
26
30
  }
27
31
  }
28
32
  }

See this step on github

Here are a few more things to observe. We are deliberately ignoring the error from into_raw_mode. Our error handling is mainly aimed at avoiding garbled output, which can only occur when we are actually repeatedly writing to the screen, so for our purposes, there is no need for any additional error handling before our loop begins.

Then, we have introduced a new concept: match. For now, you can think about match as a supersized if-then-else. It takes the original variable b, which either contains the value we want wrapped in Ok, or an error wrapped in Err. Let’s look at an easier example:

//...
match foo {
    Ok(bar) => {
        //...
    },
    Err(err) => {
        //...
    }
}
//...

This code can be read as: If the variable foo is an Ok value, unwrap its contents, bind it to the variable bar and execute the following code block. In our case, we use variable shadowing again, so that the wrapped variable b will be unwrapped and bound to b.

We will investigate match more deeply later. Here’s the link to the docs in case you are interested.

Conclusion

That concludes this chapter on entering raw mode. We have learned a lot about the terminal and about the fundamentals of Rust along the way. In the next chapter, we’ll do some more terminal input/output handling, and use that to draw to the screen and allow the user to move the cursor around. We will also refactor our code to be more idiomatic, but first, we need to clarify what idiomatic means.
